VSWR Analyzer

Matching problems in RF systems often show up as reduced transmitted power, unstable performance, or avoidable stress on transmitters and amplifiers. In these situations, a VSWR Analyzer helps engineers and technicians evaluate how efficiently power is transferred between the source, transmission line, and load, making it an important tool for antenna work, telecom maintenance, and RF bench testing.

On this category page, you can explore instruments used to measure VSWR, return loss, and related impedance behavior across relevant frequency ranges. These tools are commonly selected for antenna tuning, feeder line checks, site verification, and general RF troubleshooting where mismatch needs to be identified quickly and clearly.

Why VSWR measurement matters in RF and telecom work

Voltage Standing Wave Ratio is a practical indicator of how well an RF system is matched. When impedance mismatch occurs, part of the signal is reflected back toward the source instead of being delivered to the load. That reflection can affect signal quality, power efficiency, and in some cases long-term equipment reliability.

A dedicated analyzer gives users a direct way to assess mismatch conditions in antennas, cables, connectors, and RF paths. In telecom and broadcast-related environments, this type of measurement is especially useful during installation, preventive maintenance, and fault isolation, where poor matching can be one of the first signs of a physical or configuration issue.

What to expect from instruments in this category

Products in this range are intended for RF measurement tasks where standing wave behavior and reflected power performance need to be checked over a defined frequency span. Depending on the model, users may also work with related parameters such as return loss and impedance at standard RF values such as 50 Ω.

Some applications require a compact analyzer focused on VSWR testing, while others are handled within a broader radio or RF test platform. For example, the Protek A336M VSWR Analyzer supports measurements from 6 MHz to 6 GHz and is positioned for practical RF line and antenna checks, while the Rohde & Schwarz CMA180 Radio Test Set represents a wider radio test environment that can support more comprehensive service and maintenance workflows.

Typical applications for a VSWR analyzer

These instruments are widely used anywhere the RF path must be verified rather than assumed. Common examples include antenna installation, cable and connector inspection, service work on communication systems, and validation of RF transmission chains after maintenance or component replacement.

For teams that also work with line condition and antenna behavior in the field, a cable and antenna analyzer may be relevant alongside this category. Where a broader view of spectral conditions is needed during troubleshooting, a signal analyzer can complement VSWR measurements by helping users observe signals, interference, or occupied spectrum behavior.

How to choose the right model

The first consideration is frequency range. The analyzer should comfortably cover the full operating band of the system under test, with enough margin for setup, tuning, or future measurement needs. This matters whether you are checking a narrowband communication path or evaluating a wider RF system used across multiple bands.

Next, look at the measurement scope and workflow. If your work is centered on mismatch testing, a dedicated VSWR analyzer may be the most direct choice. If your team handles broader RF servicing, a platform from Rohde & Schwarz or PROTEK may be considered depending on whether you need focused VSWR testing or a more general radio test setup.

Other practical points include port configuration, number of measurement points, frequency accuracy, and scan speed where available. These factors affect how efficiently the instrument can be used for fine tuning, repeated test routines, and comparative measurements across different devices or installations.

Examples from featured manufacturers and products

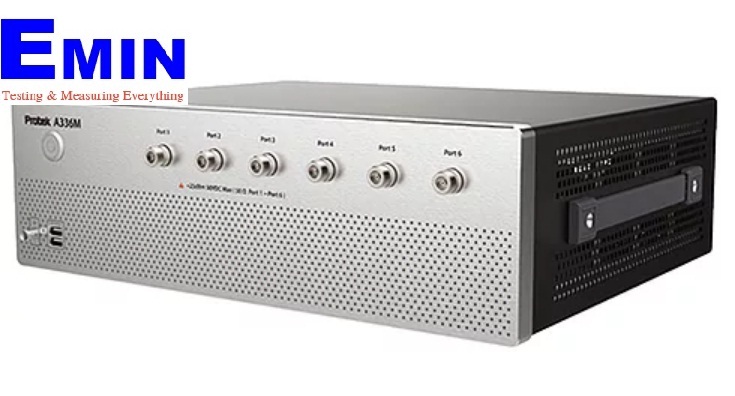

PROTEK is represented here by the Protek A336M VSWR Analyzer, a model suited to direct VSWR and return loss measurement across a broad RF span. Its specification profile makes it relevant for users working on antenna systems, feed lines, and general RF matching checks where measurement coverage and usability are both important.

Rohde & Schwarz appears in this category through the CMA180 Radio Test Set. While not limited to a single-function role, this type of instrument fits environments where RF verification is part of a larger maintenance or communications test process. It can be a better match when VSWR-related checks are only one part of a wider service requirement.

VSWR analyzers within a broader test setup

In many laboratories, service centers, and telecom workshops, VSWR measurement is not performed in isolation. It often sits alongside signal generation, receiver checks, and other RF verification steps. If you are building a fuller test bench, related equipment such as a signal generator may also be useful depending on the test method and device under evaluation.

This broader perspective is helpful when choosing between a dedicated field-oriented analyzer and a multi-function bench instrument. The right selection depends less on headline features and more on the actual workflow: field installation, service diagnostics, production verification, or periodic maintenance.

Practical buying considerations for B2B users

For industrial and telecom buyers, the best choice usually comes down to repeatability, relevant measurement coverage, and fit with existing procedures. A model that aligns with your connectors, operating bands, and reporting needs will often deliver more value than one with unnecessary complexity.

It is also useful to think about who will use the instrument and where. Field teams may prioritize speed and direct measurement access, while bench users may prefer broader integration with other RF tools. Reviewing intended application, frequency range, and required measurement functions is the most reliable way to narrow the shortlist.

Find the right VSWR analyzer for your RF measurement tasks

This category brings together instruments for evaluating RF matching, reflected power behavior, and antenna or line performance in practical telecom and electronic measurement work. Whether you need a dedicated analyzer for day-to-day antenna checks or a broader radio test platform for service applications, the right option depends on the systems you support and the measurements you perform most often.

Browse the available models to compare measurement approach, frequency coverage, and intended use. A well-matched VSWR analyzer can make troubleshooting faster, setup more consistent, and RF system validation more dependable.
