What Is a Magnetic Drill? Structure and How It Works
Magnetic drills are no longer unfamiliar devices — in fact, many households today already keep one on hand for when the need arises. However, not everyone truly understands what a magnetic drill is, how it operates, or how it's structured inside, even if they’ve read through the instruction manual before.

So, what exactly is a magnetic drill used for? How should it be operated properly, and what are its key strengths or limitations to keep in mind? How can you ensure both safety and efficiency when using the tool? All of these questions will be addressed in detail in the content below — let’s dive in.
1. What is a Magnetic Drill?

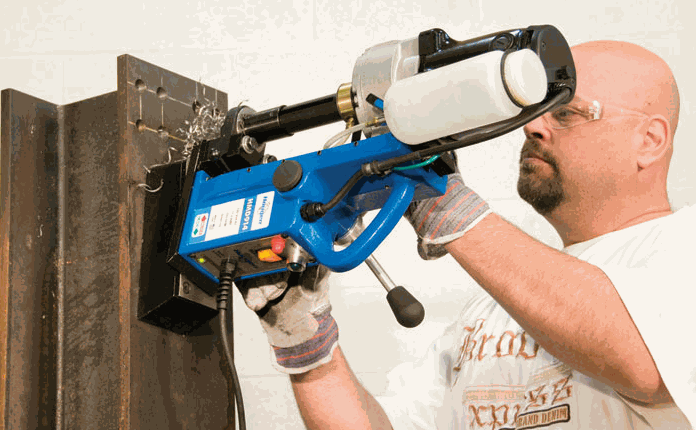

A magnetic drill is a specialized type of handheld drilling machine designed with a magnetic base. Thanks to this feature, the machine can firmly adhere to the surface of the material without the need for manual stabilization, ensuring excellent steadiness during operation.
The magnetic force helps the drill function securely, minimizing vibration that could otherwise cause misalignment or pose safety risks. This design also enables the drill to work effectively in various orientations — horizontal, vertical, and even upside down — making it especially useful for working in tight or hard-to-reach spaces.

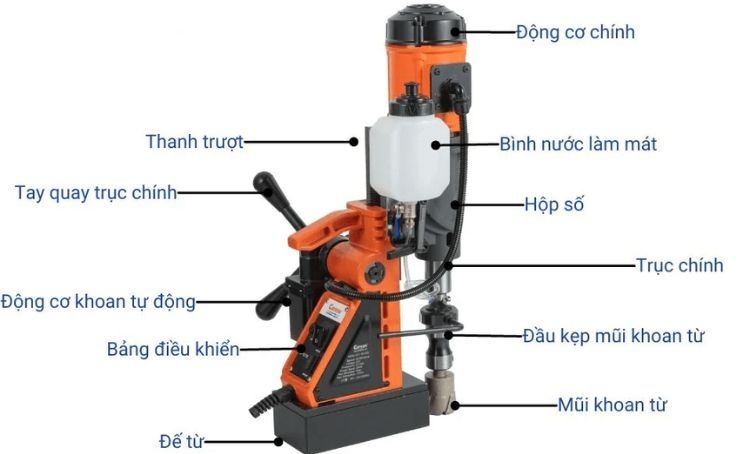

2. Structure of a Magnetic Drill
Currently, there are many models of magnetic drills on the market, varying in design and features depending on their intended use. Nevertheless, most commonly used models share a basic set of components, including a gearbox, main spindle, primary motor, and an auxiliary motor that supports automatic drilling.

Additionally, the machine is equipped with a sliding rail system for movement adjustment, a coolant tank to reduce heat during drilling, and a handwheel on the spindle for manual control when needed.
The chuck at the front holds the annular cutter securely in place, while the magnetic base allows the machine to stick firmly to metal surfaces. All functions are managed through a control panel mounted directly on the body of the machine, allowing users to operate it flexibly and accurately according to specific needs.
3. Operating Principle of a Magnetic Drill
The operating mechanism of a magnetic drill relies on a combination of rotational force and downward pressure to drive the cutting tool into the material. Once the machine is powered on, the magnetic base locks onto the metal surface to stabilize the unit.
The drill bit then begins to rotate, applying force at the contact point and gradually cutting into the material through a continuous circular motion. Depending on the shape and size of the cutting bit used, the drill can create holes of various diameters and profiles, making it highly versatile for metalworking applications.
4. Practical Applications of Magnetic Drills
Thanks to their compact design and flexible functionality, magnetic drills are extremely effective for drilling metal in confined areas, challenging positions, or elevated locations — situations where conventional drills may struggle to perform.
Common use cases include drilling inside steel cavities, on I-beams, or across large steel plates at construction sites. As a result, magnetic drills are widely used in industries such as offshore platform construction, bridge and road building, and shipbuilding or repair. It’s fair to say that this tool has become indispensable in environments involving steel structures and heavy metalwork.
5. Important Considerations When Choosing a Magnetic Drill
To select the right machine, it's essential to clearly define your actual usage requirements and make a choice based on factors like power, design, and form factor to match the nature of your work.

Moreover, for safety and long-term reliability, it’s advisable to go with products that have a clear origin and are manufactured by reputable brands with proven market presence. Purchasing from authorized distributors is also highly recommended, as it guarantees quality and ensures access to after-sales services and warranty policies.
Popular Magnetic Drill Brands on the Market
The magnetic drill market today is vibrant, offering a wide range of products from many well-known brands, giving users plenty of options that fit both their needs and budget. Notable names include AGP, Bosch, BDS, Cayken, FEIN, Milwaukee, Metabo, and Magbroach, all recognized for their quality, durability, and reliable performance.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
