What Machine is Used to Machine Pistons? A Simple Guide to Centerless Grinding

Have you ever wondered how small parts like engine pistons are machined to achieve perfect circularity? In that process, the centerless grinding machine plays a crucial role, especially in the automotive, aerospace, and precision engineering industries.

What is a Centerless Grinding Machine?

A centerless grinder allows for the circular grinding of parts without needing them to be fixed or clamped. This significantly reduces setup time, speeds up the grinding process, and achieves a high surface finish.

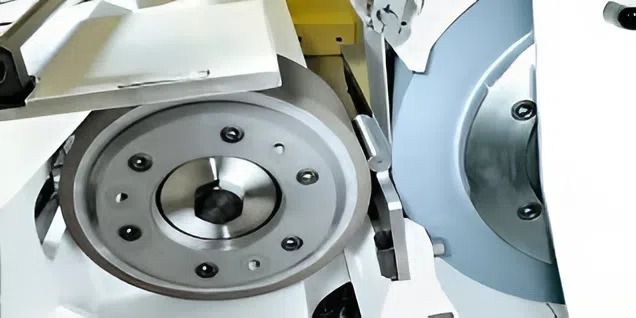

The operating principle is highly intuitive: the workpiece is supported on a work blade, resting between a grinding wheel and a regulating wheel, with both wheels rotating in opposite directions. The grinding wheel removes material, while the regulating wheel keeps the workpiece rotating smoothly and moving steadily. The result is a perfectly round, vibration-free part with no runout.

For instance, the SMAC 3G6040 centerless grinder can process parts with diameters from 4 to 20 mm, achieving a roundness and surface roughness , which is highly suitable for machining small engine pistons.

Meanwhile, the WMT CNC machine handles parts from 1 to 32 mm with a tolerance of just $0.001 \text{ mm}$, and includes a CNC control system for automation and maintaining high stability in production.

Practical Advantages of Centerless Grinding Machines

Increased Productivity: It can grind multiple parts simultaneously, making it ideal for mass production. The simple setup means very fast changeover times between product batches.

Consistent Roundness and Roughness: Typically achieves micron-level precision, meeting stringent technical requirements.

Cost Savings: The precise grinding process from the start reduces material wastage and minimizes rework time.

Flexibility: It works with various materials, from hardened steel, aluminum, to composites, and can be adjusted to suit individual part specifications.

In practice, automotive piston manufacturing plants often use the SMAC centerless grinder with $28 \text{ kW}$ power and a $7 \text{ ton}$ weight, which is robust enough for continuous operation while conserving energy and ensuring component durability.

How to Choose the Right Centerless Grinding Machine

When selecting a grinder for piston machining, you should consider:

Required Roundness and Roughness: This level determines the type of machine and accompanying technology.

Automation Level: CNC helps reduce manual intervention and stabilize productivity, while semi-automatic machines save on initial investment costs.

Production Scale: For continuous production, choose a machine with appropriate power and cooling systems.

You can explore machine models from SMAC and WMT CNC, which are favored by many factories for their stability and long-term operational capability.

Conclusion

The centerless grinding machine is a vital tool for machining pistons to high precision and achieving stable production volumes. Investing in the correct machine type not only improves product quality but also reduces costs and increases operational efficiency.

If you are looking for an optimal solution for your piston production line or small cylindrical parts, research the machine specifications carefully before making a decision. Doing so will ensure you see clear effectiveness in real-world operation.
