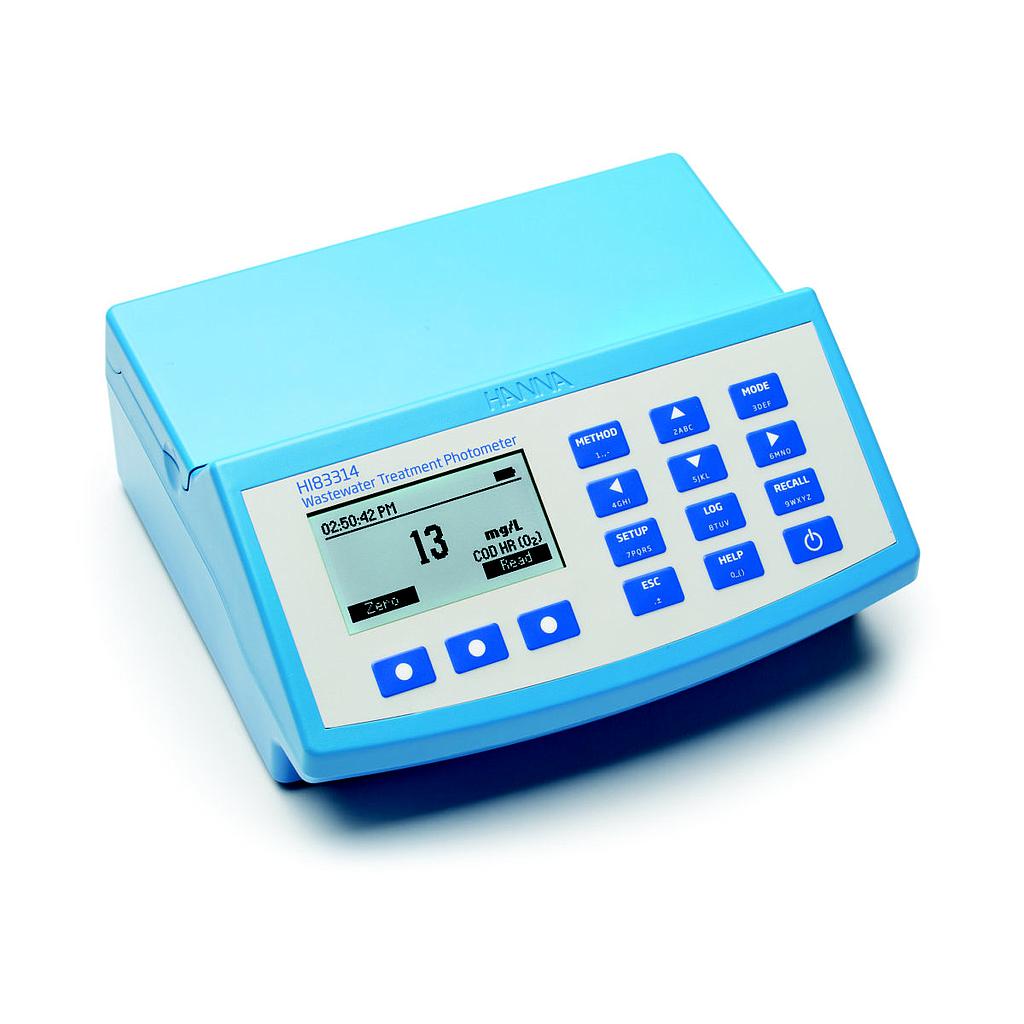

Hanna HI83314 Wastewater Multiparameter (with COD) Benchtop Photometer and pH meter

Wavelength Accuracy: ±1 nm
Light Source: 5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral bandwidth: 8 nm
Input Channels : 1 pH electrode input and 5 photometer wavelengths
pH Electrode: digital pH electrode (not included)
Logging Type: log on demand with user name and sample ID optional input
Logging Memory: 1000 readings
Connectivity: USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP: calibration data for connected pH electrode
Display: 128 x 64 pixel LCD with backlight
Battery Type / Life: 3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply: 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment: 0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Dimensions: 206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Weight : 1.0 kg (2.2 lbs.)
Photometer/Colorimeter Light Detector: silicon photodetector
Cuvette Type : round, 24.6 mm
Number of Methods : 128 max.
Ordering Information: HI83314 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.

Detail

Manual

Parameter Range Resolution Accuracy (at 25 °C) Method Wavelength Reagent Code
Absorbance 0.000 to 4.000 Abs 0.001 Abs +/-0.003Abs @ 1.000 Abs
Ammonia, Low Range 0.00 to 3.00 mg/L (as NH3 -N) 0.01 mg/L ±0.04 mg/L ±4% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method. 420 nm HI93700-01
Ammonia, Medium Range  0.00 to10.00 mg/L (as NH3 -N) 0.01 mg/L ±0.05 mg/L ±5% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method 420 nm HI93715-01
Ammonia, High Range  0.0 to 100.0 mg/L (as NH3 -N) 0.1 mg/L ±0.5 mg/L ±5% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method 420 nm HI93733-01
Chemical Oxygen Demand, Low Range 0 to 150 mg/L (as O2 ) 1 mg/L ±5 mg/L or ±4% of reading Adaptation of the USEPA 410.4 420 nm HI93754A-25
Chemical Oxygen Demand, Medium Range 0 to 1500 mg/L (as O2 ) 1 mg/L ±15 mg/L or ±4% of reading Adaptation of the USEPA 410.4 610 nm HI93754B-25
Chemical Oxygen Demand, High Range 0 to 15000 mg/L (as O2 ) 1 mg/L ±150 mg/L or ±2% of reading Adaptation of the USEPA 410.4 610 nm HI93754C-25
Chlorine, Free  0.00 to 5.00 mg/L (as Cl2 )  0.01 mg/L  ±0.03 mg/L ±3% of reading  Adaptation of the EPA DPD method 330.5 525 nm  HI93701-01
Chlorine, Total  0.00 to 5.00 mg/L (as Cl2 )  0.01 mg/L  ±0.03 mg/L ±3% of reading  Adaptation of the EPA DPD method 330.5  525 nm HI93711-01
Nitrate  0.0 to 30.0 mg/L (as NO3 - N)  0.1 mg/L  ±0.5 mg/L ±10% of reading  Adaptation of the cadmium reduction method 525 nm  HI93728-01
Nitrite, Low Range  0 to 600 µg/L (as NO2 -N)  1 µg/L  ±20 µg/L ±4% of reading  Adaptation of the EPA Diazotization method 354.1  466 nm HI93707-01
Nitrite, High Range  0 to 150 mg/L (as NO2-)  1 mg/L  ±4 mg/L ±4% of reading  Adaptation of the Ferrous Sulfate method  575 nm HI93708-01
Nitrogen, Total Low Range 0.0 to 25.0 mg/L (as N) 0.1 mg/L ±1.0 mg/L or ±5% of reading Chromotropic acid method 420 nm HI93767A-50
Nitrogen, Total High Range 0 to 150 mg/L (as N) 1 mg/L ±3 mg/L or ±4% of reading Chromotropic acid method 420 nm HI93767B-50
pH  6.5 to 8.5 pH  0.1 pH  ±0.1 pH  Adaptation of the Phenol Red method  525 nm HI93710-01
Phosphorous, Rective Low Range 0.00 to 1.60 mg/L (as P) 0.01 mg/L ±0.05 mg/L or ±4% of reading Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method. 610 nm HI93758A-50
Phosphorous, Rective High Range 0.0 to 32.6 mg/L (as P) 0.1 mg/L ±0.5 mg/L or ±4% of reading Adaptation of the Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P C, vanadomolybdophosphoric acid method. 420 nm HI93763A-50
Phosphorous, Acid Hrdyolyzable 0.00 to 1.60 mg/L (as P) 0.01 mg/L ±0.05 mg/L or ±5% of reading Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method. 610 nm HI93758B-50
Phosphorous, Total Low Range 0.00 to 1.15 mg/L (as P) 0.01 mg/L ±0.05 mg/L or ±6% of reading Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method. 610 nm HI93758C-50
Phosphorous, Total High Range 0.0 to 32.6 mg/L (as P) 0.1 mg/L ±0.5 mg/L or ±5% of reading Adaptation of the Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P C, vanadomolybdophosphoric acid method. 420 nm HI93763B-50
