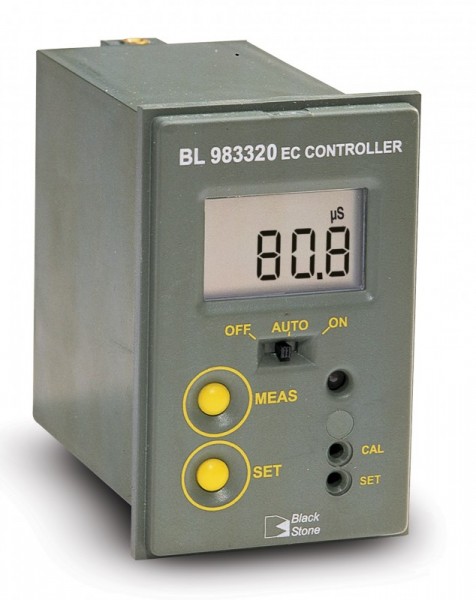

HANNA BL983320-1 Conductivity (EC) Controller EC

Range

0.0 to 199.9 μS/cm

Resolution

0.1 μS/cm

Accuracy (@25°C/77°F)

±2% full scale

Calibration

manual, with CAL trimmer

Dosing Relay

maximum 2A (fuse protected), 250 VAC, 30 VDC

Dosing Selection

relay activated (contact closed) when the measurement is greater than the setpoint

Setpoint

adjustable from 0 to 199.9 μS/cm

Overtime

adjustable, typically from 5 to approximately 30 minutes

Temperature Compensation

automatic from 5 to 50°C (41 to 122°F) with beta =2%/ºC

Power Supply

models “-0”: 12 VDC adapter (included)
models “-1”: 115/230 VAC; 50/60Hz

Dimensions

83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’)

Weight

models “-0”: 200 g (7.1 oz.)
models “-1”: 300 g (10.6 oz.)

Ordering Information

BL983320-1 (115/230 VAC) and BL983320-0 (12 VDC)are supplied with mounting

brackets, transparent cover and instruction manual.

Warranty

12 months
